Product Description

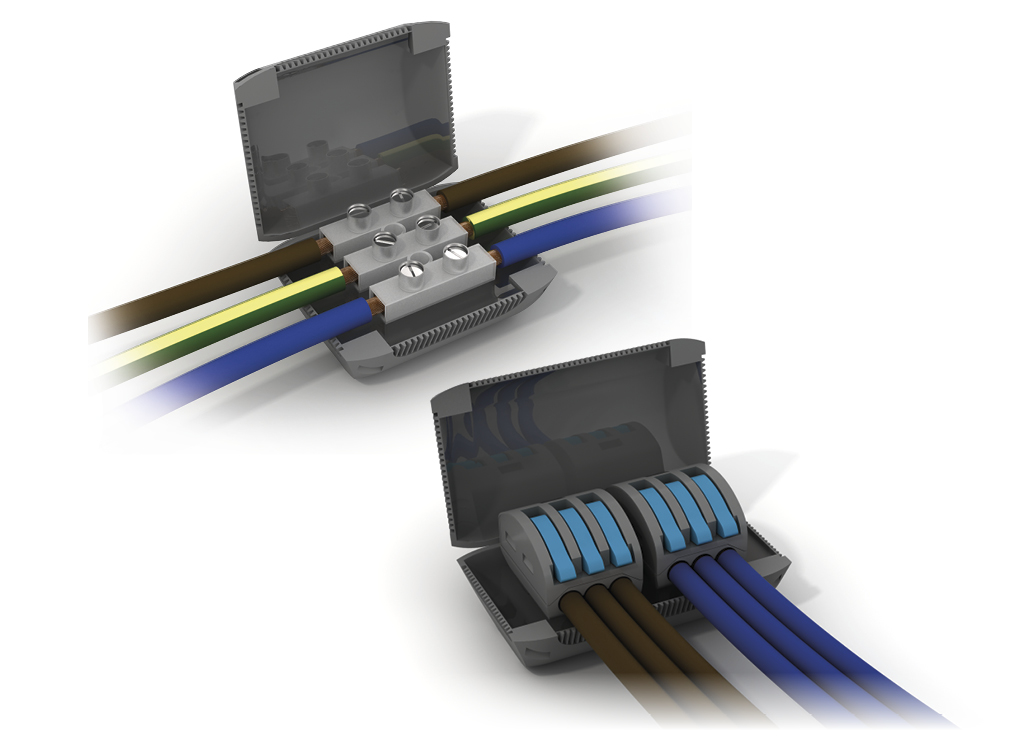

ETELEC IPX8 Gel filled Straight joints for 5 Core Conductor cross-section range (min-max): 16 – 25 mm2
APPLICATIONS
- Straight joints for low voltage cable up to 0.6/1 kV
- Installation: directly buried, underground, overhead, in cable ducts
- Street lighting systems
KEY FEATURES
- Pre-filled: no resin or gel to cast
- Size 240x75x43mm
- Ready to install
- Excellent electrical insulation
- Good mechanical strength
- No accidental access to live parts (IEC EN 60364 / CEI 64-8)
- Unlimited shelf life
Compliant to Standard for low voltage joints 0.6/1 kV EN 50393
Self-extinguishing EN 60695-2-11
Low smoke and toxic gases emission CEI 20-37/2-1
CEI 20-37/4
Degree of protection equivalent to IPX8 (1 meter depth immersion test, EN 50393 art. 8.7)
Operating temperature
–20 ºC / +90 ºC
 CE Marking |
 IMQ certified |
 RINA Certified |
 Double insulated |
 |
 Ready to use |
 Re-enterable |
 Unlimited shelf life |
 2011/65/UE |
 Non-toxic |
 Eco-friendly |
