Cable clip for hole (round)/for stud, ⌀M8, Dmin=24.5mm, Dmax=25.5mm
Colour Black (BK) Fixation Method Stud Mount Key product features vibration absorbing, sealed, for multiple routing Material Polyamide 6.6, glass-fibre reinforced (PA66GF15), Thermoplastic Elastomer (TPE) PART DESCRIPTION HDC25x2-PA66GF15/TPE-BK Package Content 350pcs. Package Content packed in carton Product Family for multiparallel routing Product Group Fixing elements for tubes and harnesses Type HDC25x2 UV-Stabilised No
Cable clip for hole (round)/for stud, Dmin=14.0mm, Dmax=17.0mm, ⌀M5
Soft AEM inserts protect the wiring from crushing, abrasion and chemicals | Easy installation thanks to the special closure | In PA6HS for temperatures up to 90?C and PA46 for temperature up to 150?C | For fixing on 5.0 mm studs with anti-rotation pin | For 2 cables or parallel routing | The Twist-Lock closing system (20.0 – 24.0 mm) acts with the same force on both compartments and significantly increases the necessary reopening force by decreasing the closing force | Rotatable fastener = 20.0 -24.0 mm bundle diameter | Hinge lock = 14.0 -17.0 mm bundle diameter
Cable clip for hole (round)/for stud, Dmin=14.0mm, Dmax=17.0mm, ⌀M5
For fixing on M5 studs with anti-rotation pin | Diameters from 14 mm to 17 mm | For 2 cables or parallel routing
Cable clip for hole (round)/for stud, Dmin=14.0mm, Dmax=17.0mm, ⌀M5
Soft AEM inserts protect the wiring from crushing, abrasion and chemicals | Easy installation thanks to the special closure | In PA6HS for temperatures up to 90?C and PA46 for temperature up to 150?C | For fixing on 5.0 mm studs with anti-rotation pin | For 2 cables or parallel routing | The Twist-Lock closing system (20.0 – 24.0 mm) acts with the same force on both compartments and significantly increases the necessary reopening force by decreasing the closing force | Rotatable fastener = 20.0 -24.0 mm bundle diameter | Hinge lock = 14.0 -17.0 mm bundle diameter
Cable clip for hole (round)/for stud, Dmin=19.5mm, Dmax=19.5mm, nom⌀=19.5, ⌀5.0 mm/M5
Ideal for fixing corrugated tubings | Easy installation thanks to the special closure | In PA6HS for temperatures up to 90?C and PA46 for temperature up to 150?C | For fixing on 5.0 mm studs with anti-rotation pin | For 2 cables or parallel routing | with a hinge lock and without a rubber insert (NR = no rubber) | The HV-Clips can also be manufactured with other material combinations or already available
Cable clip for hole (round)/for stud, Dmin=19.5mm, Dmax=19.5mm, nom⌀=19.5, ⌀5.0 mm/M5
Ideal for fixing corrugated tubings | Easy installation thanks to the special closure | In PA6HS for temperatures up to 90?C and PA46 for temperature up to 150?C | For fixing on 5.0 mm studs with anti-rotation pin | For 2 cables or parallel routing | with a hinge lock and without a rubber insert (NR = no rubber) | The HV-Clips can also be manufactured with other material combinations or already available
Cable clip for hole (round)/for stud, Dmin=20.0mm, Dmax=24.0mm
For fixing on M5 studs without anti-rotation pin | Diameters from 20 mm to 24 mm | For 2 cables or parallel routing
Cable clip for hole (round)/for stud, Dmin=20.0mm, Dmax=24.0mm, ⌀M5
Soft AEM inserts protect the wiring from crushing, abrasion and chemicals | Easy installation thanks to the special closure | In PA6HS for temperatures up to 90?C and PA46 for temperature up to 150?C | For fixing on 5.0 mm studs with anti-rotation pin | For 2 cables or parallel routing | The Twist-Lock closing system (20.0 – 24.0 mm) acts with the same force on both compartments and significantly increases the necessary reopening force by decreasing the closing force | Rotatable fastener = 20.0 -24.0 mm bundle diameter | Hinge lock = 14.0 -17.0 mm bundle diameter
Cable clip for hole (round)/for stud, Dmin=20.0mm, Dmax=24.0mm, ⌀M5
Easy installation thanks to the special closure | In PA46 for temperature from 40? to 150?C | For fixing on M5 studs with anti-rotation pin | Diameters from 20 mm to 24 mm | For 2 cables or parallel routing | The HV-Clips can also be manufactured with other material combinations or already available
Cable clip for hole (round)/with pipe/tube holder
For fixing and bundling convoluted tubes and pipes | Suitable for nearly every application
Cable clip for hole (round)/with pipe/tube holder, ⌀6.1 – 6.9 mm, Dmin=15.0mm, Dmax=19.0mm
For fixing and bundling convoluted tubes and pipes | Suitable for nearly every application

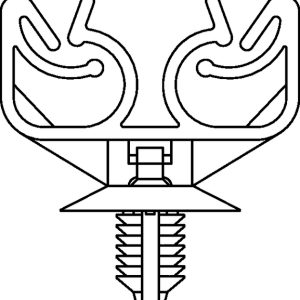

Cable clip for hole (round)/with pipe/tube holder, ⌀6.4 – 7.1 mm
Colour Black (BK) Key product features removable, for multiple routing Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) PART DESCRIPTION ICD5x10FT6LGSTUD5-PA66HIRHS-BK Package Content 2000pcs. Package Content packed in bag Type ICD5x10FT6LGSTUD5
